import numpy as np
import matplotlib.pyplot as plt
import gbox as gbSynthetic Image Compression
In this notebook, we will explore various techniques for compressing synthetic images, taking advantage of a particular structure in the data. Our goal is to reduce a large number of pixels to a smaller set of parameters and preparing a graph representation of the image. The primary constraint on this compression is that the reconstruction should be lossless, meaning that we should be able to perfectly reconstruct the original image from the compressed representation.

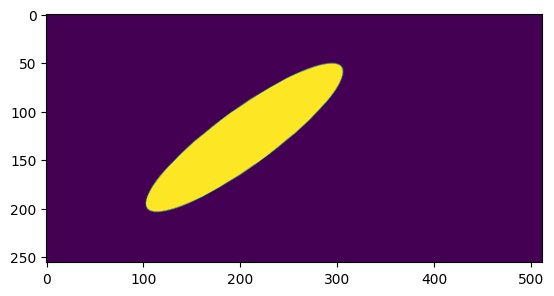

Create a target Image
img_h, img_w = 256, 512
ellipse = gb.Ellipse(4.1, 1.0, (1.0, 0.0), np.pi * 0.25)
ell_arr = ellipse.plot(
shape_options={"facecolor": "white", "edgecolor": "None"},
bg_options={"facecolor": "black", "edgecolor": "None"},
image_options={"mode": "L", "size": (img_w, img_h)},
bounds=[-5.0, -5.0, 10.0, 5.0],
as_array=True,
)
img_size = ell_arr.shape
print(f"Image size: {img_size}")
plt.imshow(ell_arr)
plt.show()Image size: (256, 512)
QuadTree Implementation
class QuadNode:
def __init__(self, value=None, children=None):
self.value = value
self.children = children
@property
def is_leaf(self):
return self.children is None
class QuadTreeBuilder:
def __init__(self):
self._num_nodes = 0
self.leaves = [] # [x, y, dx, dy, val]
@property
def num_nodes(self):
n_leaves = len(self.leaves)
return n_leaves if n_leaves != 0 else self._num_nodes
def build(self, img):
if img.min() == img.max():
self._num_nodes += 1
return QuadNode(value=img[0, 0])
h, w = img.shape
# Stop if block is a single pixel
# Cases when four children are not possible
if h == 1 or w == 1:
if h == 1 and w == 1:
self._num_nodes += 1
return QuadNode(value=img[0, 0])
elif h == 1 and w != 1:
w2 = w // 2
children = [self.build(img[:, :w2]), self.build(img[:, w2:])]
return QuadNode(children=children)
elif w == 1 and h != 1:
h2 = h // 2
children = [self.build(img[:h2, :]), self.build(img[h2:, :])]
return QuadNode(children=children)
else:
# QuadTree with four children
h2 = h // 2
w2 = w // 2
children = [
self.build(img[:h2, :w2]),
self.build(img[:h2, w2:]),
self.build(img[h2:, :w2]),
self.build(img[h2:, w2:]),
]
return QuadNode(children=children)
def collect_leaves(self, node: QuadNode, x, y, h, w):
if node.is_leaf:
self.leaves.append((x, y, h, w, node.value))
return
if len(node.children) == 4:
h2, w2 = h // 2, w // 2
self.collect_leaves(node.children[0], x, y, h2, w2)
self.collect_leaves(node.children[1], x, y + w2, h2, w - w2)
self.collect_leaves(node.children[2], x + h2, y, h - h2, w2)
self.collect_leaves(
node.children[3], x + h2, y + w2, h - h2, w - w2
)
elif len(node.children) == 2:
if h == 1: # splitting horizontal patch
w2 = w // 2
self.collect_leaves(node.children[0], x, y, h, w2)
self.collect_leaves(node.children[1], x, y + w2, h, w - w2)
else: # splitting vertical patch
h2 = h // 2
self.collect_leaves(node.children[0], x, y, h2, w)
self.collect_leaves(node.children[1], x + h2, y, h - h2, w)
def reconstruct(self, root_node, root_origin, h, w, target_size):
if len(self.leaves) == 0:
self.collect_leaves(root_node, *root_origin, h, w)
reconstructed = np.zeros(target_size)
for x, y, h, w, value in self.leaves:
reconstructed[x : x + h, y : y + w] = value
return reconstructed
def visualise(self, root_node, root_origin, h, w, original_arr):
if len(self.leaves) == 0:
self.collect_leaves(root_node, *root_origin, h, w)
fig, axs = plt.subplots(1, 2, figsize=(12, 6))
axs[0].imshow(original_arr, cmap="gray")
axs[0].set_title("Original")
axs[1].imshow(original_arr, cmap="gray")
axs[1].set_title("Reconstruction")
for x, y, h, w, _ in self.leaves:
rect = plt.Rectangle(
(y, x),
w,
h,
edgecolor="y",
facecolor="none",
linewidth=1.0,
)
axs[1].add_patch(rect)
plt.show()
plt.close(fig)
def merge_horizontal_and_vertical_blocks(self):
# horizontal merging
blocks = sorted(self.leaves, key=lambda b: (b[0], b[1]))
merged = []
prev = None
for x, y, h, w, val in blocks:
if prev is None:
prev = [x, y, h, w, val]
continue
px, py, ph, pw, pv = prev
if x == px and y == py + pw and ph == h and pv == val:
prev[3] += w # extend width
else:
merged.append(tuple(prev))
prev = [x, y, h, w, val]
if prev:
merged.append(tuple(prev))
# Vertical merging
blocks = sorted(merged, key=lambda r: (r[1], r[0]))
merged = []
prev = None
for x, y, h, w, val in blocks:
if prev is None:
prev = [x, y, h, w, val]
continue
px, py, ph, pw, pv = prev
if y == py and x == px + ph and pw == w and pv == val:
prev[2] += h
else:
merged.append(tuple(prev))
prev = [x, y, h, w, val]
if prev:
merged.append(tuple(prev))
self.leaves = merged
qtb = QuadTreeBuilder()
qroot_node = qtb.build(ell_arr)
num_original_nodes = ell_arr.size
print(f"Number of original image size: {num_original_nodes}")
pct_reduction = (1.0 - (qtb.num_nodes / num_original_nodes)) * 100
recon = qtb.reconstruct(qroot_node, (0, 0), *ell_arr.shape, ell_arr.shape)
is_same = np.all(recon == ell_arr)
print(f"\nNumber of nodes: {qtb.num_nodes}")
print(f"Reduction in number of nodes: {pct_reduction:.3f} %")
print("Is reconstructed img same?: ", is_same)

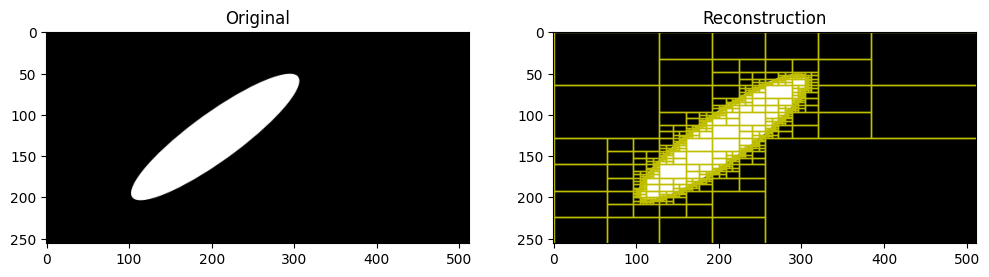

qtb.visualise(qroot_node, (0, 0), *ell_arr.shape, ell_arr)

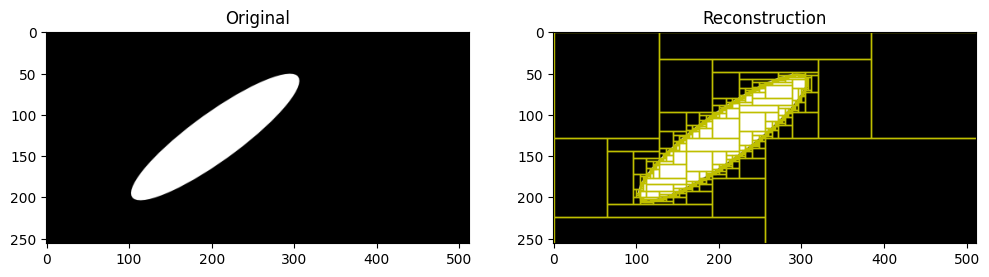

print("Summary after horizontal and vertical merging...")
qtb.merge_horizontal_and_vertical_blocks()
pct_reduction = (1.0 - (qtb.num_nodes / num_original_nodes)) * 100
recon = qtb.reconstruct(qroot_node, (0, 0), *ell_arr.shape, ell_arr.shape)
is_same = np.all(recon == ell_arr)
print(f"\nNumber of nodes: {qtb.num_nodes}")
print(f"Reduction in number of nodes: {pct_reduction:.3f} %")
print("Is reconstructed img same?: ", is_same)
qtb.visualise(qroot_node, (0, 0), *ell_arr.shape, ell_arr)Number of original image size: 131072
Number of nodes: 1953
Reduction in number of nodes: 98.510 %
Is reconstructed img same?: True
Summary after horizontal and vertical merging...
Number of nodes: 1308
Reduction in number of nodes: 99.002 %
Is reconstructed img same?: True
A short study on how ellipse orientation affects the compression
def get_nodes_(
aspect_ratio, area_fraction, num_angles=10, image_size=(256, 256)
):
angles = np.linspace(0.0, np.pi * 0.5, num_angles)
bounds = [-5.0, -5.0, 5.0, 5.0]
ell_centre = (0.0, 0.0)
area = (bounds[2] - bounds[0]) * (bounds[3] - bounds[1])
results = []
b = np.sqrt((area_fraction * area) / (np.pi * aspect_ratio))
a = aspect_ratio * b
for a_ang in angles:
ellipse = gb.Ellipse(a, b, ell_centre, a_ang)
ell_arr = ellipse.plot(
shape_options={"facecolor": "white", "edgecolor": "None"},
bg_options={"facecolor": "black", "edgecolor": "None"},
image_options={"mode": "L", "size": image_size},
bounds=bounds,
as_array=True,
)
qtb = QuadTreeBuilder()
qroot_node = qtb.build(ell_arr)
assert np.all(
qtb.reconstruct(qroot_node, (0, 0), *image_size, image_size)
== ell_arr
)
a_result = [np.rad2deg(a_ang), qtb.num_nodes]
qtb.merge_horizontal_and_vertical_blocks()
assert np.all(
qtb.reconstruct(qroot_node, (0, 0), *image_size, image_size)
== ell_arr
)
a_result.append(qtb.num_nodes)
results.append(a_result)
results = np.array(results, dtype=np.float64)
return resultsaspect_ratios = (1.0, 2.0, 5.0)
area_fractions = (0.2, 0.5, 0.8)
image_size = (256, 256)
collection = {}
for i, aar in enumerate(aspect_ratios):
for j, aaf in enumerate(area_fractions):

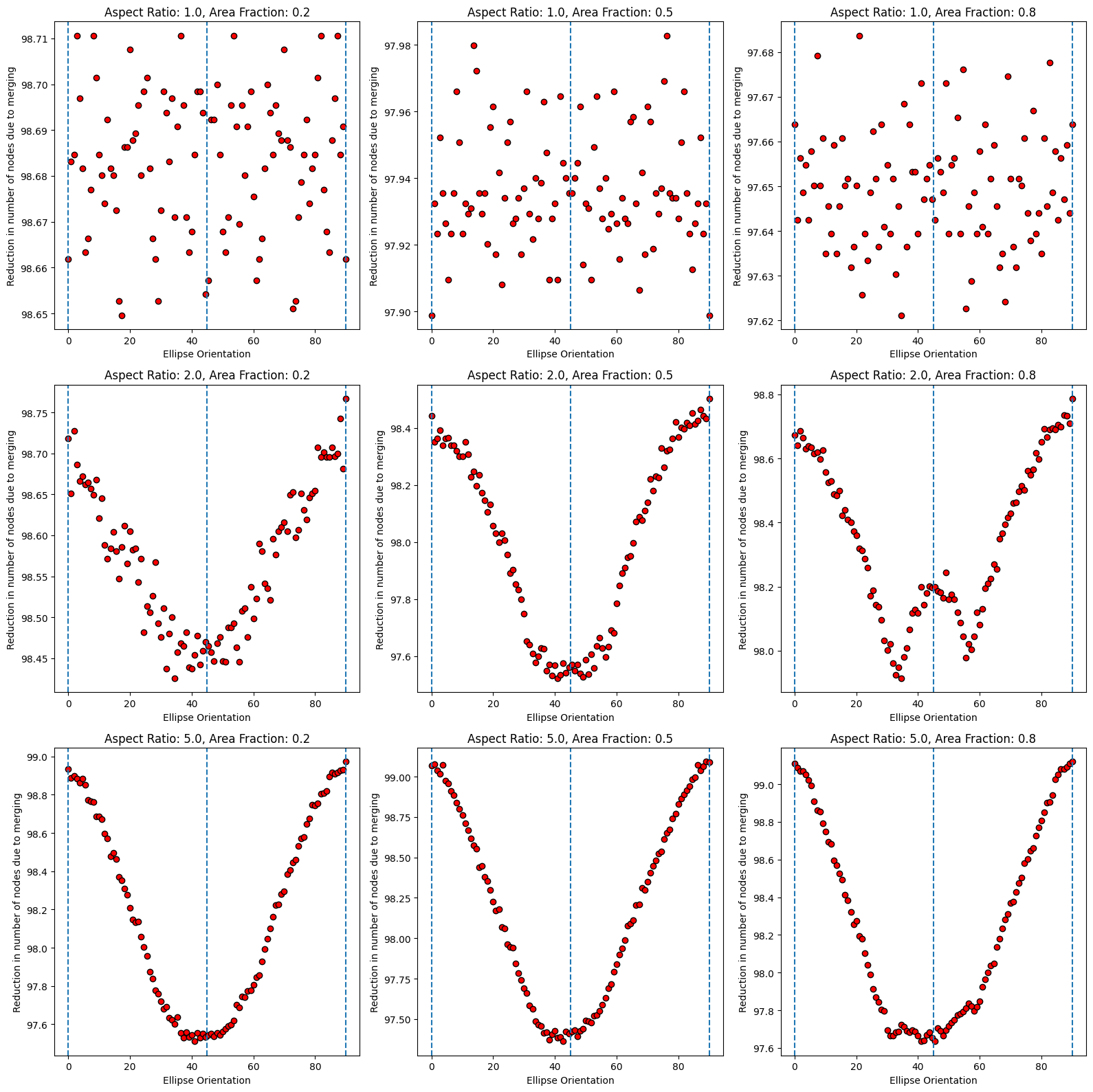

collection[(aar, aaf)] = get_nodes_(aar, aaf, 100, image_size)Variation of reduced nodes fraction at various aspect ratios, area fractions and ellipse orientations
num_original_nodes = image_size[0] * image_size[1]
fig, axs = plt.subplots(3, 3, figsize=(16, 16))
for i, aar in enumerate(aspect_ratios):
for j, aaf in enumerate(area_fractions):
node_info = collection[(aar, aaf)]
x = node_info[:, 0]
y = (1.0 - node_info[:, 2] / num_original_nodes) * 100
axs[i, j].scatter(x, y, c='r', edgecolors='k')
axs[i, j].axvline(x=0.0, linestyle="dashed")
axs[i, j].axvline(x=45.0, linestyle="dashed")
axs[i, j].axvline(x=90.0, linestyle="dashed")
axs[i, j].set_title(f"Aspect Ratio: {aar}, Area Fraction: {aaf}")
axs[i, j].set_xlabel("Ellipse Orientation")
axs[i, j].set_ylabel("Reduction in number of nodes due to merging")
plt.tight_layout()
plt.show()
In the above plot, we can see that reduction in nodes is higher at ellipse orientations closer to 0 and 90 degrees, and lower at orientations closer to 45 degrees.

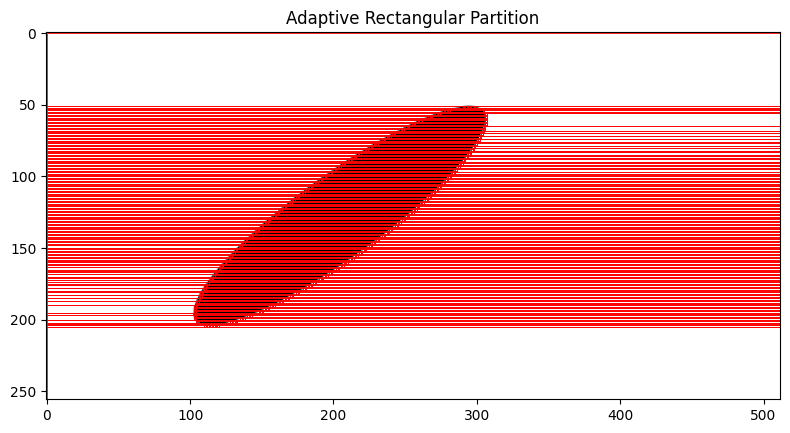

Adaptive Rectangular Partitioning
For further compression, we can use an adaptive rectangular partitioning method instead of a quad tree. This method allows for more flexible partitioning of the image, which can lead to better compression ratios, especially for images with non-square features. This apprach results in a anisiotropic patches, while the quad tree results in a more isotropic kind of partitioning. In some cases, the anisotropic patches is desirable, as it can better capture the structure of the image, while in some other cases, the isotropic patches can be more effective. The choice between the two methods depends on the specific characteristics of the image being compressed and the final use case for the compressed representation.
class AdaptiveRectangularPartition:
def __init__(self):
self.rectangles = []
@property
def num_nodes(self):
return len(self.rectangles)
def partition(self, img):
h, w = img.shape
active = {}
rectangles = []
for r in range(h):
row = img[r]
start = 0
runs = []
# detect horizontal runs
for c in range(1, w):
if row[c] != row[c - 1]:
runs.append((start, c - start, row[c - 1]))
start = c
runs.append((start, w - start, row[-1]))
new_active = {}
for start, dx, val in runs:
key = (start, dx, val)
if key in active:
x, y, dx0, dy0, v0 = active[key]
new_active[key] = (x, y, dx0, dy0 + 1, v0)
else:
new_active[key] = (r, start, dx, 1, val)
# rectangles that stopped growing
for key in active:
if key not in new_active:
rectangles.append(active[key])
active = new_active
rectangles.extend(active.values())
self.rectangles = rectangles
print("Image shape:", img.shape)
print("Max row:", max([x + dy for x, _, _, dy, _ in self.rectangles]))
print("Max col:", max([y + dx for _, y, dx, _, _ in self.rectangles]))
def reconstruct(self, shape):
img = np.zeros(shape)
for x, y, dx, dy, val in self.rectangles:
img[x : x + dy, y : y + dx] = val
return img
def visualise(self, original_arr):
fig, axs = plt.subplots(figsize=(8, 8))
axs.imshow(original_arr, cmap="gray_r")
axs.set_title("Adaptive Rectangular Partition")
for x, y, dx, dy, _ in self.rectangles:
rect = plt.Rectangle(
(y, x), # matplotlib uses (col,row)
dx,
dy,
edgecolor="r",
facecolor="none",
linewidth=0.6,
)
axs.add_patch(rect)
plt.tight_layout()
plt.show()
arp = AdaptiveRectangularPartition()
arp.partition(ell_arr)
print(f"Ell ARr shape: {ell_arr.shape}")
print(f"{'Number of rectangles':50s}:{arp.num_nodes}")
pct_reduction = (1.0 - (arp.num_nodes / ell_arr.size)) * 100
print(f"{'Reduction in number of nodes':50s}:{pct_reduction:.3f} %")
print(f"{'Fraction of base nodes':50s}:{(100.0 - pct_reduction):.3f} %")
print(f"img_size: {ell_arr.shape}")
recon = arp.reconstruct(ell_arr.shape)
print(recon.shape)
print(f"{'Reconstruction correct':50s}:{np.all(recon == ell_arr)}")
arp.visualise(ell_arr)Image shape: (256, 512)
Max row: 256
Max col: 512
Ell ARr shape: (256, 512)
Number of rectangles :1061
Reduction in number of nodes :99.191 %
Fraction of base nodes :0.809 %
img_size: (256, 512)
(256, 512)
Reconstruction correct :True
